APR RSC 3" Performance Exhaust System

APR's RSC ™ technology is now available in the New 2.0T RSC™ Performance Exhaust System. Reflective Sound Cancellation allows for maximum exhaust gas flow while completely eliminating in cabin sound resonance (drone). RSC™ incorporates innovative technologies developed in conjunction with NASA. With limited use of packing materials and no baffles, RSC™ allows for a completely straight and free flowing exhaust path through the RSC™ mufflers. Reflective Cancellation bounces the undesirable sound waves into each other to attenuate the wave and completely eliminate the low frequency tones that create drone. Each RSC™ muffler is tuned to eliminate specific, undesirable sound frequencies allowing only the engine's desirable exhaust notes to be heard and improving performance.

APR's design specifications and manufacturing requirements result in a 3" mandrel bend stainless steel performance exhaust system unmatched by any other. RSC™ technology ensures the maximum possible performance increases from any performance exhaust system while maintaining refined and unobtrusive sound inside the cabin.

APR's 2.0T RSC™ Performance Exhaust System features the same great designs from APR's Engineering Team and high quality manufacturing incorporating the following:

  • TIG Welded
  • T304 Stainless Steel Construction
  • CNC Milled Mounting Bracketry
  • High Quality Band Clamps
  • CNC Mandrel Bent Tubing
  • 200 Cell Metal Matrix Catalyst
  • Double Walled and Rolled Tips Emblazoned with the APR Tuned Logo
  • 3" Tubing Diameter
  • Lifetime Warranty

The following data was measured from a 2008 Volkswagen GTI 2.0T FSI at a 70 MPH constant speed cruise. Sound measurements are made inside the vehicle and recorded as sound pressure level (SPL) in decibels. Comparisons show the resulting sound levels tested with no mufflers, with a competitor's exhaust system, and the new APR RSC Performance Exhaust system.

png

Exhaust Packages

Turboback

Full Exhaust

Catback

Cat-Back

Downpipe

Downpipe

Exhaust Details

Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust

Exhaust will vary in appearnce between GTI, Jetta and A3 versions.

spl

Many of the competing exhaust systems do not significantly reduce the low frequency tones that occur around 50 to 200 Hz, which makes the tone levels closer to running without a muffler (dark gray bar). It's these frequency tones that are responsible for "drone". RSC acoustic prediction methods and design techniques reduce these tones without compromising the sporty sound we all enjoy from high performance automobiles.

The gray bars show data taken from the GTI with a competitor's exhaust system installed. The red bars compare results from the APR RSC™ Performance Exhaust system. The dominant low frequency tone responsible for drone occurs at 94 Hz and has been significantly reduced with the APR RSC™ Performance Exhaust system by about 20 dB compared to the competitor's exhaust system.

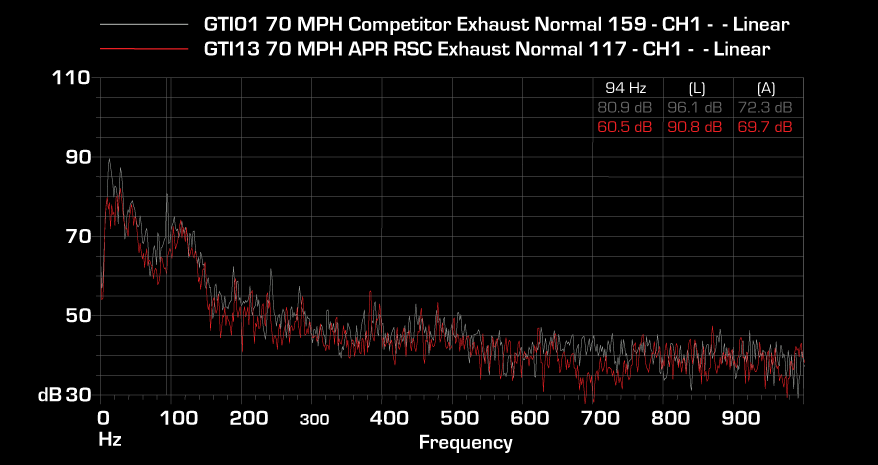

The following graph illustrates the narrowband acoustic spectra for the competitor's exhaust system and the APR RSC™ Performance Exhaust system. Both the dominant tones and the broadband sound levels are quieter for the APR RSC™ system over most of the frequency range, especially around 94 Hz where drone notes dominate.

compare

RSC™ technology provides sound levels comparable or even quieter than OEM exhaust systems at cruising speed. RSC's™ straight through design minimizes back pressure and provides gains greater than other performance exhaust systems. The example shown for the Volkswagen GTI demonstrates the ability to tailor the sound spectra to eliminate drone while maintaining a sporty sound, especially under full throttle.

Videos

Catback
Vehicle Engine Part Number Price
Audi A3 2.0T FSI & 2.0TSI CB100028£695
VW GTI 2.0T FSI & 2.0TSI CB100029£695
VW Jetta 2.0T FSI & 2.0TSI CB100026£695
Downpipe
Vehicle Engine Part Number Price
* CCTA Only
Audi A3 2.0T FSI & 2.0TSI* CD100013£595
VW GTI MKVI 2.0TSI* CD100013£595
VW GTI MKV 2.0T FSI & 2.0TSI* CD100013£595
VW Jetta 2.0T FSI & 2.0TSI* CD100013£595
VW Passat 2.0T FSI & 2.0TSI* CD100013£595
VW CC 2.0T FSI & 2.0TSI* CD100013£595
Turboback
Vehicle Engine Part Number Price
* CCTA Only
Audi A3 2.0T FSI & 2.0TSI* FE100024£1195
VW GTI 2.0T FSI & 2.0TSI* FE100025£1195
VW Jetta 2.0T FSI & 2.0TSI* FE100021£1195

Testimonials

  • Andy M. - I got reflashed the other day Level II +. (Also have completed inspection and emissions test.) And the car is now a little monster!! The car is sooo smooth, I can't get over how well everything is working together. The low- and mid-range power change is huge. I get great passing power on the highway in 6th gear! No downshift needed. And when I do fully step on it, she really takes off. I've got the DSG and all shifts have been smooth and spot on. I have not experienced any jerkiness or indecision. I just wanted to let you know that I am one satisfied customer. The bang-for-the-buck is truly impressive. And daily drivability has not been compromised.
